Description
Product Description
Description:1. AV252 is a car audio that subverts the tradition, and the design concept is the car dashboard, there are three instrument-shaped large circles on the panel, and with a high-fidelity waterproof internal magnetic speaker on each side as well as a large volume of the encoder in the middle, a circular display in the middle of the big circle, all of this make the machine and the car instrument matched well. There are not only two built-in speakers, but also two built-in closed speakers adopting sound field design on the back of the machine body, and there are two diaphragms in the rear of the speaker enhancing the bass deterrent, which contributes to the product with 2.1-channel sound quality effect; compared with the original car speakers sound quality and timbre, it is more soft, pure and beautiful with more shocking bass, avoiding the second speaker installation to the car. 2. Highlights: (1) Built-in Bluetooth 2.1 + EDR and microphone, hands-free call (2) Built-in 2 loudspeakers (3) Supports advanced audio distribution profile (4) Off time display function (5) Digital high-quality FM stereo radio (6) Preset 18 stations ( frequency: 87.5 – 108 MHz ) (7) Support USB / TF card reader ( TF card is not included ) (8) Support audio: MP3 / WMA, etc. (9) Support breakpoints and ID3 play (10) Rotary volume control (11) Multiple EQ scene selection: Jazz, rock, pop,classical, etc. (12) L / R RCA audio output jacks, can connect with subwooferSpecifications:1. Impedance: 4ohm / 8ohm 2. Frequency respond: 20 – 20000Hz 3. Sensitivity: Less than 12dB 4. Max output power: 5W x 2 5. Package Size(L x W x H): about 21.00 x 15.00 x 8.00 cm / 8.27 x 5.91 x 3.15 inchesPackage Contents:1 x AV252B 12V Bluetooth Vehicle MP3 Audio Player 2 x Installation Accessories
12 V car radio with two speakers
It fits mre scenes DIY
(1) Built-in Bluetooth 2.1 + EDR and microphone, hands-free call (2) Built-in 2 loudspeakers (3) Supports advanced audio distribution profile (4) Off time display function (5) Digital high-quality FM stereo radio (6) Preset 18 stations ( frequency: 87.5 – 108 MHz ) (7) Support USB / TF card reader ( TF card is not included ) (8) Support audio: MP3 / WMA, etc. (9) Support breakpoints and ID3 play (10) Rotary volume control (11) Multiple EQ scene selection: Jazz, rock, pop,classical, etc. (12) L / R RCA audio output jacks, can connect with subwoofer
12 V car radio with two speakers
It fits mre scenes DIY
(1) Built-in Bluetooth 2.1 + EDR and microphone, hands-free call (2) Built-in 2 loudspeakers (3) Supports advanced audio distribution profile (4) Off time display function (5) Digital high-quality FM stereo radio (6) Preset 18 stations ( frequency: 87.5 – 108 MHz ) (7) Support USB / TF card reader ( TF card is not included ) (8) Support audio: MP3 / WMA, etc. (9) Support breakpoints and ID3 play (10) Rotary volume control (11) Multiple EQ scene selection: Jazz, rock, pop,classical, etc. (12) L / R RCA audio output jacks, can connect with subwoofer
12 V car radio with two speakers
It fits mre scenes DIY
(1) Built-in Bluetooth 2.1 + EDR and microphone, hands-free call (2) Built-in 2 loudspeakers (3) Supports advanced audio distribution profile (4) Off time display function (5) Digital high-quality FM stereo radio (6) Preset 18 stations ( frequency: 87.5 – 108 MHz ) (7) Support USB / TF card reader ( TF card is not included ) (8) Support audio: MP3 / WMA, etc. (9) Support breakpoints and ID3 play (10) Rotary volume control (11) Multiple EQ scene selection: Jazz, rock, pop,classical, etc. (12) L / R RCA audio output jacks, can connect with subwoofer
12 V car radio with two speakers
It fits mre scenes DIY
(1) Built-in Bluetooth 2.1 + EDR and microphone, hands-free call (2) Built-in 2 loudspeakers (3) Supports advanced audio distribution profile (4) Off time display function (5) Digital high-quality FM stereo radio (6) Preset 18 stations ( frequency: 87.5 – 108 MHz ) (7) Support USB / TF card reader ( TF card is not included ) (8) Support audio: MP3 / WMA, etc. (9) Support breakpoints and ID3 play (10) Rotary volume control (11) Multiple EQ scene selection: Jazz, rock, pop,classical, etc. (12) L / R RCA audio output jacks, can connect with subwoofer
1 Din universal size

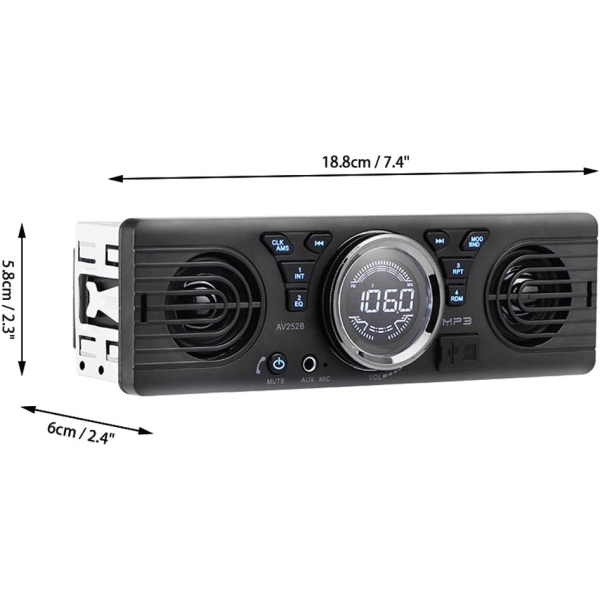

It is universal one din size, as long as your car is universal one din, it will fit in. If you are not sure, you can make a measurement on the size. our car radio’s installation size is 18.8*5.8*5.5CM.
How to set the time?
AMS / Clock button
1)In MP3 state, press this button to show the clock and exit in five seconds automatically; press and hold it for two seconds, and use the VOLUME knob to adjust the clock when the hour digits “00:” flash; press it again to switch to minute digits “00”, and use the VOLUME knob to adjust the clock; after adjusting, press and hold it confirm and show the time, and press it again to exit the clock.
2) In radio state, press this button to show the clock and exit in five seconds automatically; press and hold it scan and save radio channels automatically to number 1, 2, 3 and 4 in FM 1, FM2 and FM3 band in sequence. Up to 12 channels can be saved. When saving, the LCD shows the band and number button. (The clock can’t be adjusted in radio state)

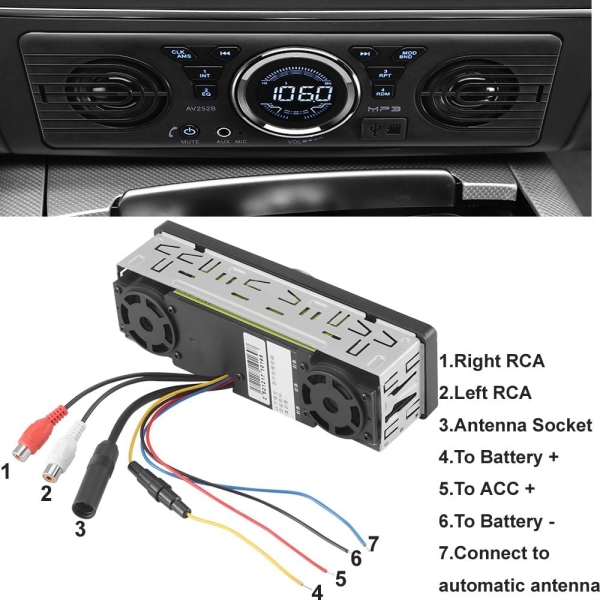

Host wiring diagram
Tips for installation, the red cables should connect with ACC ignition cable from your car, yellow cable should connect with battery positive, and black cable connect with battery negative (ground cable).
There wire cables must be matched with the corresponding function, and are indispensable. It can run smoothly with the correct connecting. Blue wire cable is the automatic antenna signal line, if there is not automatic antenna function,do not connect it, for it may get it damaged!

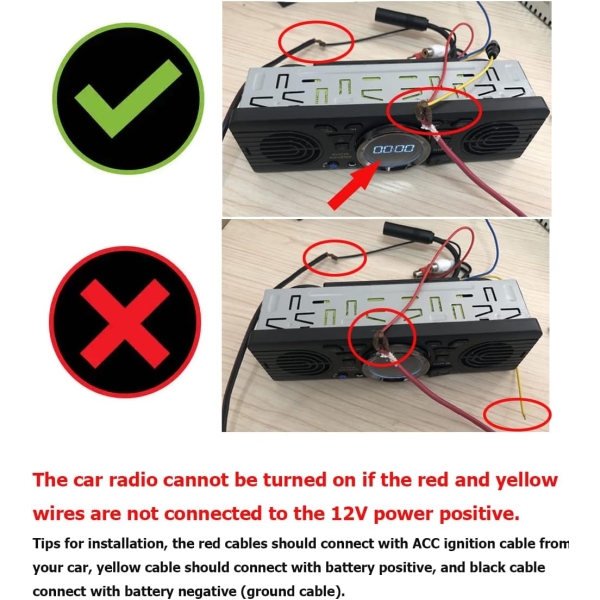

Why the car radio can’t be turned on?
1. The car radio cannot be turned on if the red and yellowwires are not connected to the 12V power positive.
2. If the fuse of yellow cable is broken, the car radio can’t be turned on. please change a new fuse to test the car radio again

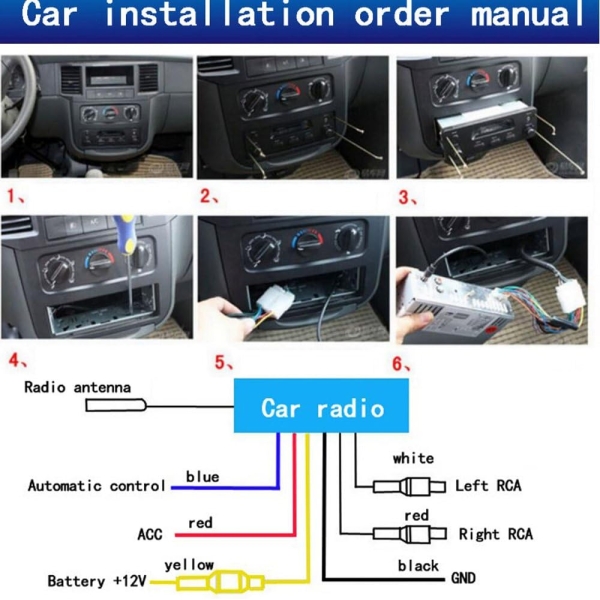

Tips for installation,
The red cables should connect with ACC ignition cable from your car
The yellow cable should connect with battery positive,
The black cable connect with battery negative (ground cable).
Specifications:
1. Impedance: 4ohm / 8ohm
2. Frequency respond: 20 – 20000Hz
3. Sensitivity: Less than 12dB
4. Max output power: 5W x 2
Add to Cart
Add to Cart
Customer Reviews
4.2 out of 5 stars
4
—
4.1 out of 5 stars
18
3.2 out of 5 stars
13
4.1 out of 5 stars
1,002
3.6 out of 5 stars
75
Price
—
— $21.90$21.90
— $29.90$29.90
—
Feature
Android 8.1,6.9 inch Touch screen 7 inch Retractable screen Vehicle Navigation Location, Audio Record, Voice Assistant, APP Control Voice Control,Gesture Control Built-in Two Speakers Car DVD CD Player
CARPLAY & ANDROID AUTO
✓
✓
No No No No
Bluetooth Hands-Free
✓
✓
✓
✓
✓
✓
USB & TF Card & AUX IN Port
2 USB Ports 1 USB Port & 1 TF Card Port & 1 AUX IN Port 2 USB Ports & 1 TF Card Port & 1 AUX IN Port 1 USB Port & 1 AUX IN Port 1 USB Port & 1 TF Card Port & 1 AUX IN Port 1 USB Port & 1 TF Card Port & 1 AUX IN Port
Button Backlight
✓
seven color seven color
✓
✓
✓
Bluetooth Hands-free Function:Built-in Bluetooth function,can connect to Phone,and handsfree calling,support bluetooth music play,more safer when driving car. Note: If the car radio only had one button that lights up, it is the problem that the red and yellow wires are not connected to the 12V power positive at the same time.
Built-in 2 loudspeakers,compared with the original car speakers sound quality and timbre, it is more soft, pure and beautiful with more shocking bass, avoiding the second speaker installation to the car.
USB(U Disk) /SD Card/MMC:Support USB/SD/MMC vast storage equipment, and you can download the songs you like into the storage equipment to play, which is very convenient.
AUX Audio Input Function:Support external Plug AUX Audio Input, such as GPS navigation, MP3, MP5, Mobile phone audio and so on. Input through the front-terminal AUX audio, and output sound from the built-in speaker.
Automatic search station, save station. FM radio(87.5-108MHz) can store 18 radio stations also, listen to music, newsletters, traffic information. Enjoy yourself anytime.
☆Note: The car radio cannot be turned on if the red and yellow wires are not connected to the 12V power positive at the same time. Tips for installation, the red cables should connect with ACC ignition cable from your car, yellow cable should connect with battery positive, and black cable connect with battery negative (ground cable).
