Description

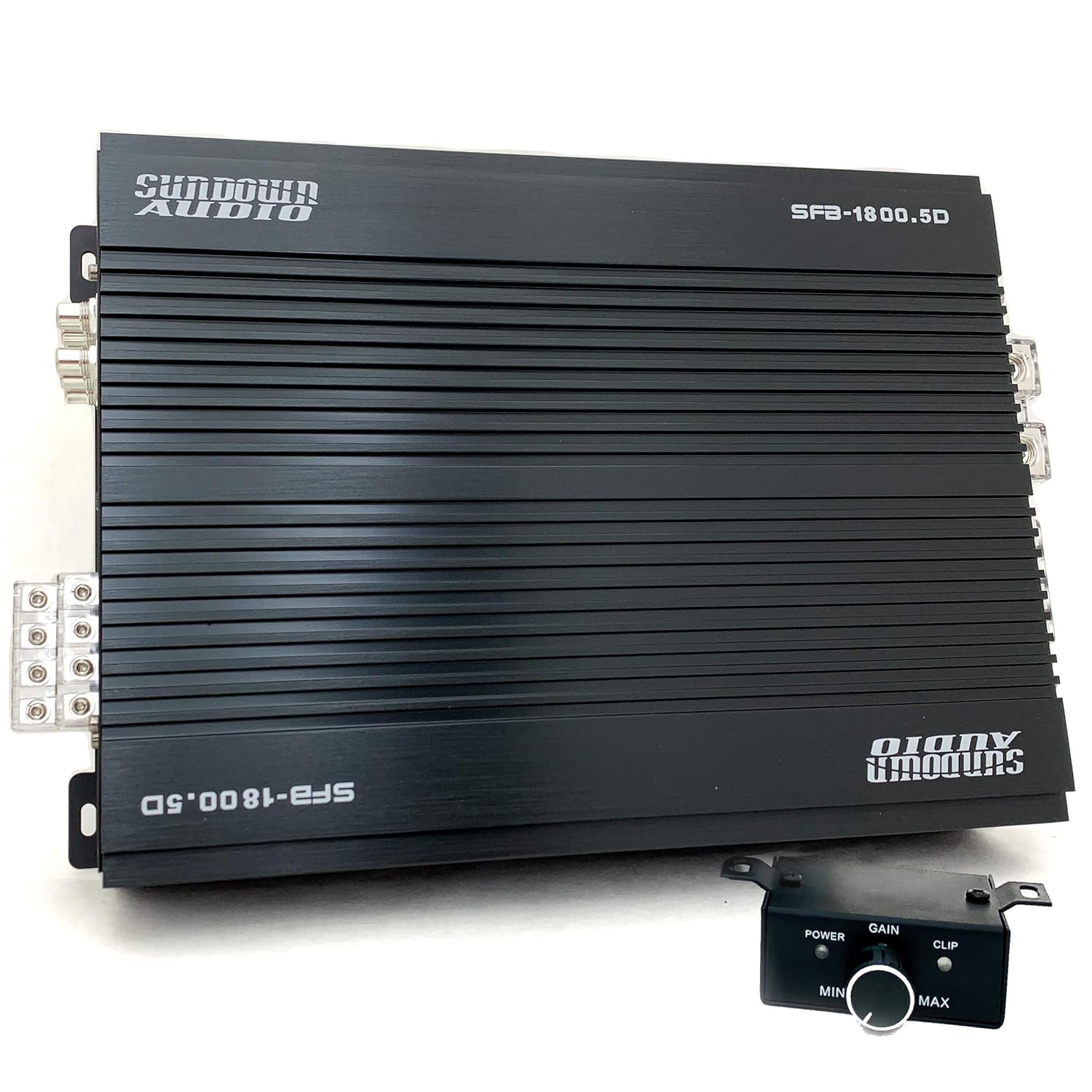

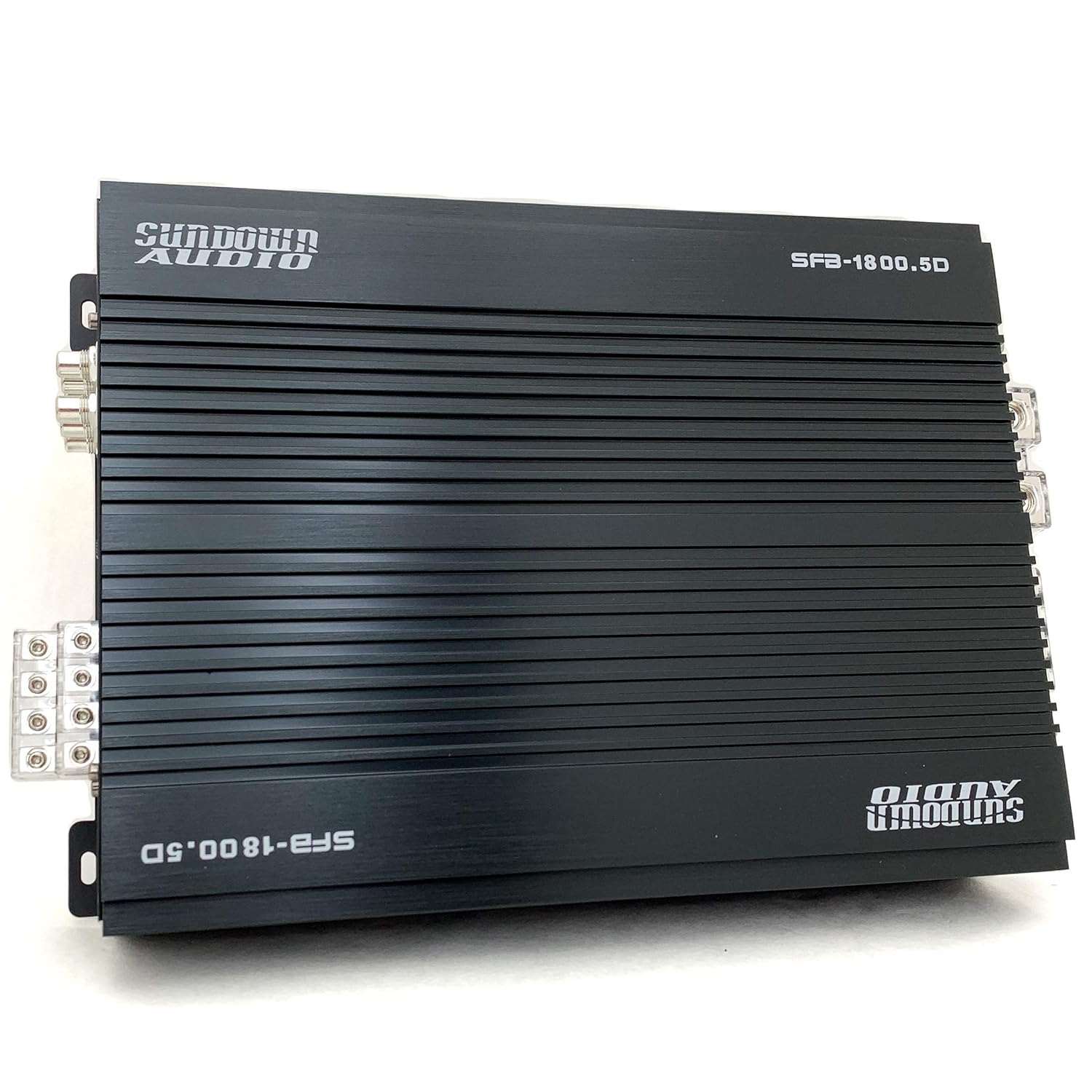

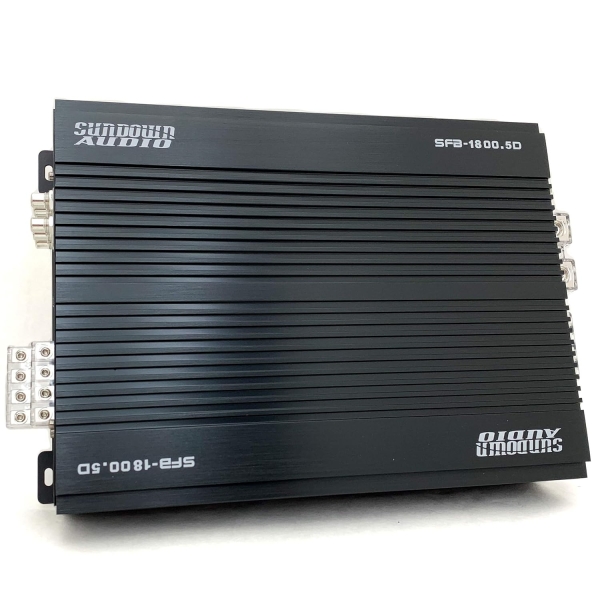

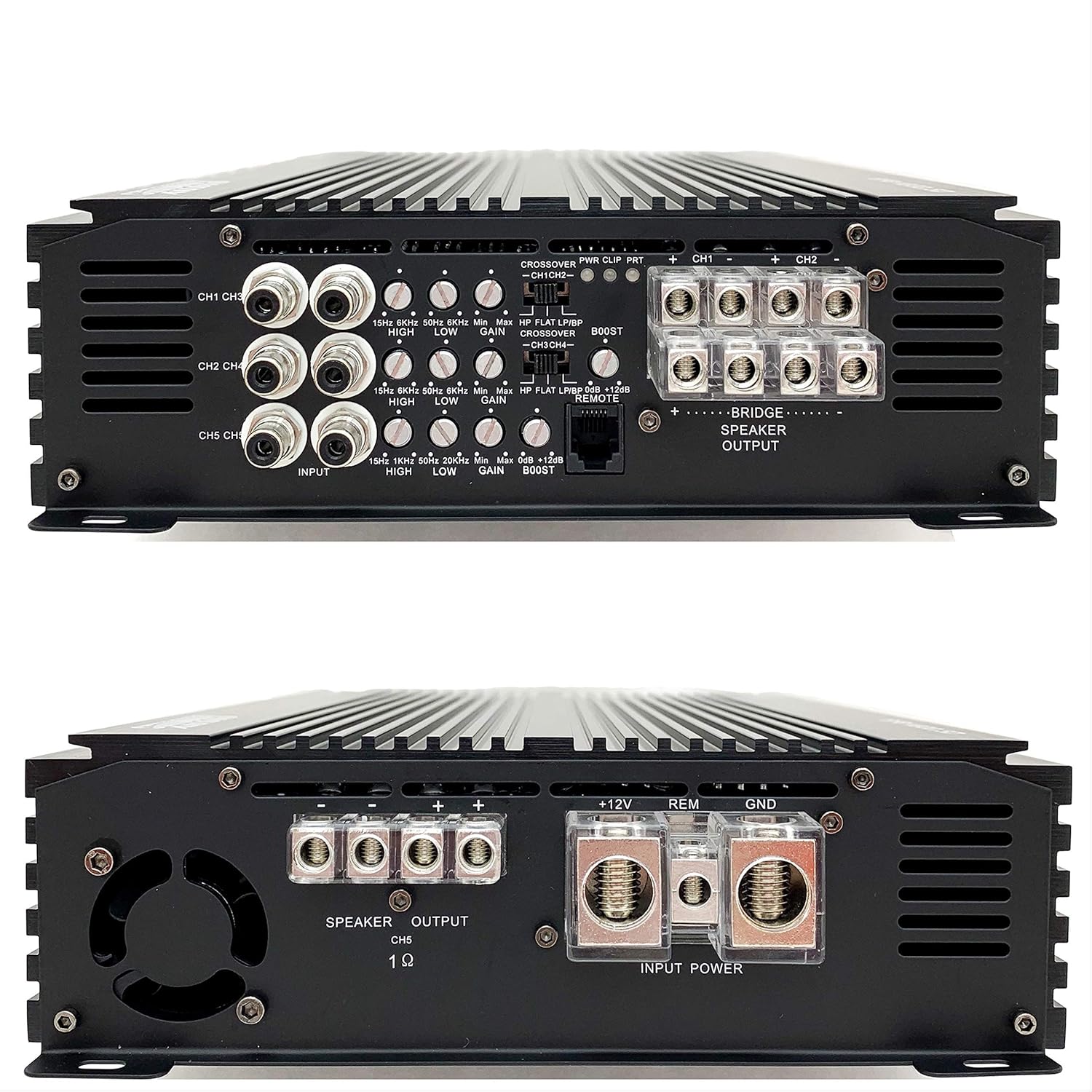

SUNDOWN AUDIO SFB-1800.5D | 5 CHANNEL CLASS D AMPLIFIER

FEATURES:

High Efficiency Digital Multi-Channel Design
12 dB/Octave – Variable Low Pass Filter
12 dB/Octave – Variable High Pass Filter
Variable Bass Boost
Clipping Indicator
4 Way Protection Ciruit (Thermal, Voltage, Speaker Short, DC Offset)

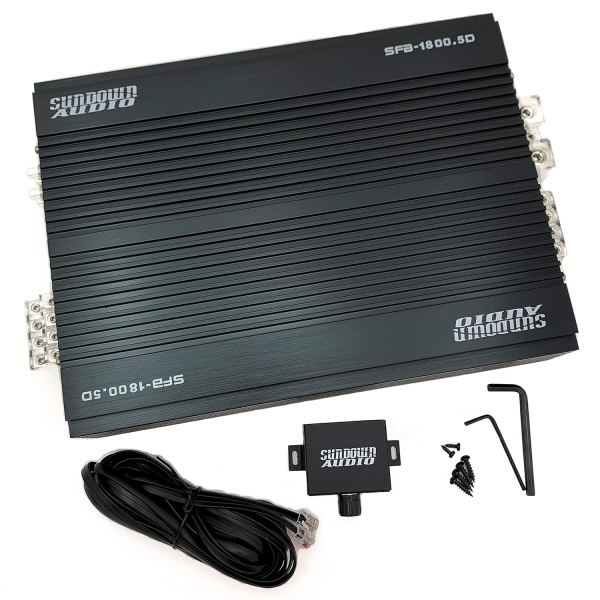

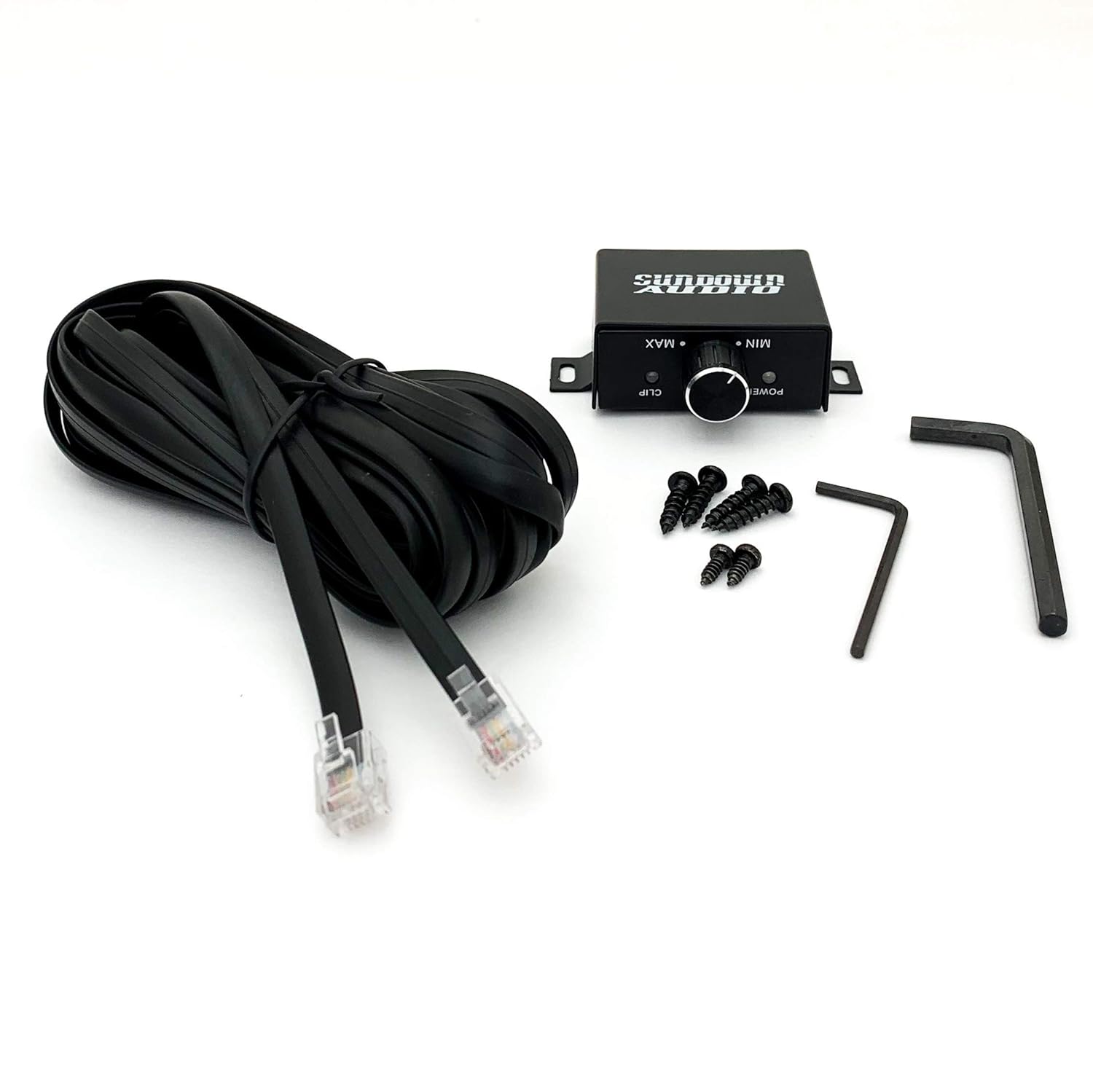

Optional Wired Remote Control with Clipping Indicator

SPECIFICATIONS (Tested @ 14.4v)

1 ohm RMS: Not Supported (CH 1-4) 1000W (CH 5)
2 ohm RMS: 300W (CH 1-4) 500W (CH 5)
4 ohm RMS: 200W (CH 1-4) 250W (CH 5)
Recommended Fuse Rating: 150A
Low Pass Filter (Variable):50Hz-6kHz (CH 1-4) / 50Hz-20kHz (CH 5)
High Pass Filter (Variable): 15Hz-6kHz (CH 1-4) / 15Hz-1kHz (CH 5)
Bass Boost @ 50Hz: 0-12dB
Input Sensitivity: 5V Max
S/N Ratio: 100dB
Working Voltage: 10.5v-15.5v
Dimensions: 9.00″ x 12.50″ x 2.75″

Product Dimensions ‏ : ‎ 15.31 x 12.01 x 5.12 inches; 10.36 Pounds
Item model number ‏ : ‎ SFB-1800.5D
Date First Available ‏ : ‎ February 17, 2021
Manufacturer ‏ : ‎ Sundown Audio
ASIN ‏ : ‎ B08WVXBQSK

1 Ohm: 230W @ 4ch + 1410W @ 1ch RMS
2 Ohm: 148W @ 4ch + 860W @ 1ch RMS
4 Ohm: 88W @ 4ch + 510 @ 1ch RMS
Input Sensitivity: 200MV
Dimensions (inches): 12″ x 9″ x 2.75″
